Radium Fuel Hanger, MK4 Supra, Pumps Not Included, Walbro F90000267/274/285

ELECTRICAL
The custom-designed stainless electrical studs easily handle the high current demand that compact bulkhead connectors lack. These serviceable connections are properly sealed and impervious to all standard and exotic fuels. The low profile design keeps all wiring tucked nicely underneath the OEM fuel tank cover using the provided foam insulation.

Nonconductive acorn nuts are provided to prevent any accidental short circuits. Furthermore, the high-quality in-tank wiring is insulated with chemically resistant ETFE. Electrical hardware is included for the fuel pump(s), OEM level sender, and OEM temperature sensor. Single pump applications can reuse the OEM fuel pump controller wiring, but it is recommended to upgrade the OEM wiring as these high-flow fuel pumps draw additional current requiring larger gauge wire.

FUEL STARVATION
One conclusion with the dated OEM system is poor protection against fuel starvation. The Radium Engineering system incorporates a unique siphon jet pump. Using a venturi effect, this "mechanical" pump draws fuel from outside the sub-tank and distributes it directly to the pump inlets.

VENTURI JET PUMP
1. The siphon system has been redesigned to completely eliminate any restriction on the return line but still effectively scavenge fuel. This means higher-flowing pumps can be safely used without inducing fuel pressure issues.
2. The new venturi jet pump will consume 15-45 LPH, depending on the current fuel pressure. Take this fuel loss into consideration when sizing the fuel pump(s).

3. Furthermore, there is a new high-flow integrated check valve on the merged fuel pump outlet, as shown above. This valve maintains fuel pressure after the engine is shut down.

FEATURES
-Drop-In OEM Replacement
-Permits 1-3 Pumps and 1-2 E5LM Pumps
-8AN Male Pump Outlet
-6AN Male Return Inlet
-Fuel Starvation Protection
-High Current Electrical Hardware
-Compatible with Various Pumps
-Anodized Aluminum Construction

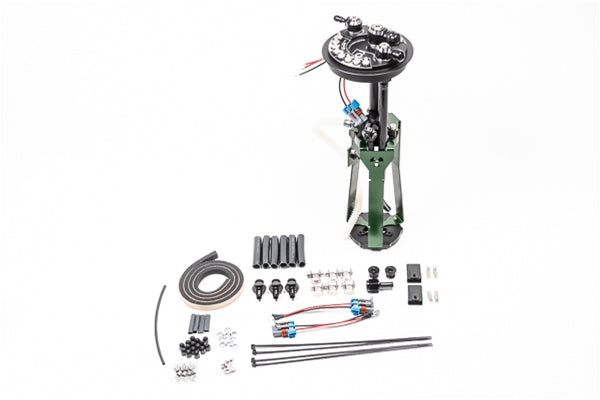

INCLUDED
-8AN Male Fitting for Pump Outlet
-6AN Male Fitting for Aftermarket Return
-8.5mm Barb Hose End for OEM Return
-6.5mm Barb Fitting for OEM Vent
-OEM Fuel Sensor Mount
-Venturi Siphon Jet Pump
-Fuel Resistant Submersible Tubing
-Fuel Resistant ETFE Insulated Wiring
-Stainless Hardware
-Pump Inlet Filtration


20-1512 FUEL HANGER, MK4, PUMPS NOT INCLUDED, WALBRO F90000267/274/285
This fuel pump hanger is designed specifically for the following Walbro DCSS 39/50 fuel pump part numbers: F90000267, F90000274, F90000285.

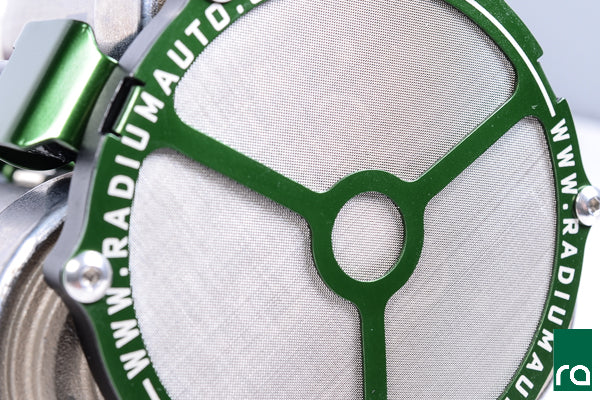

Both 20-1510 and 20-1512 can accommodate 1, 2, or 3 fuel pumps. A bespoke stainless steel triple pump mesh strainer is included for proper fuel pump inlet filtration.
