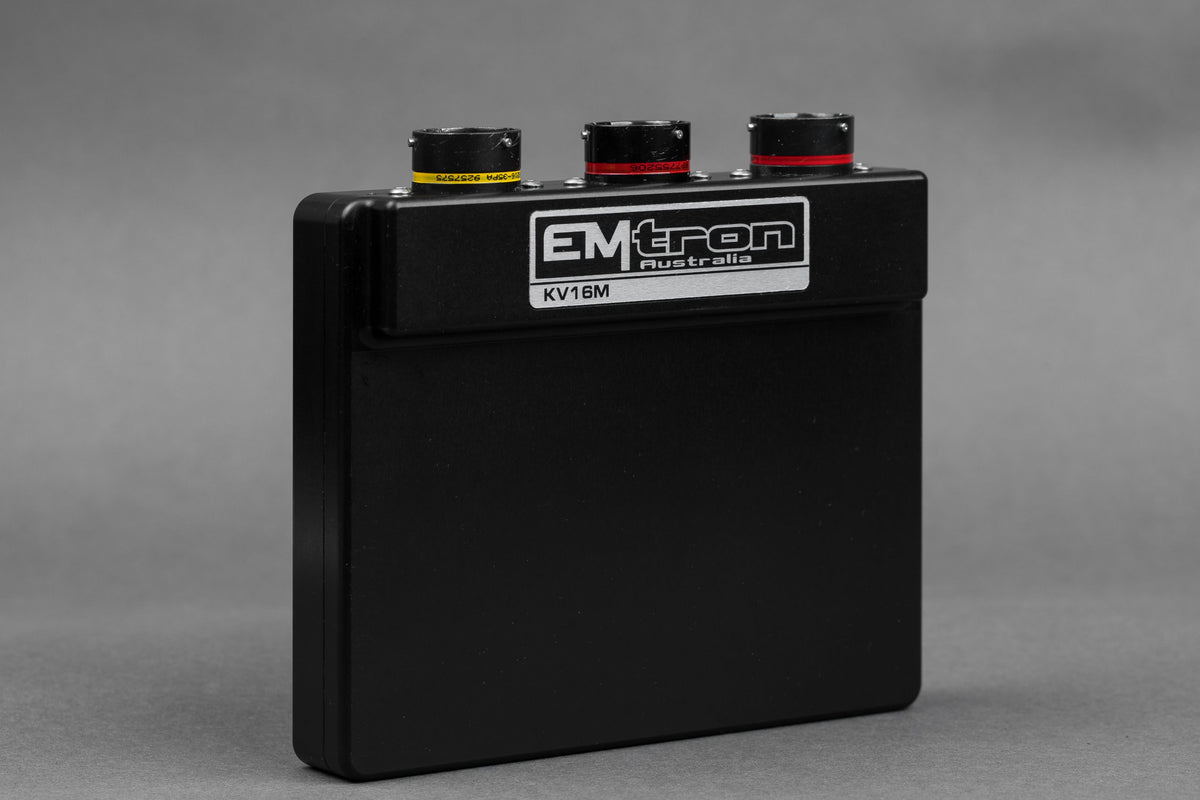

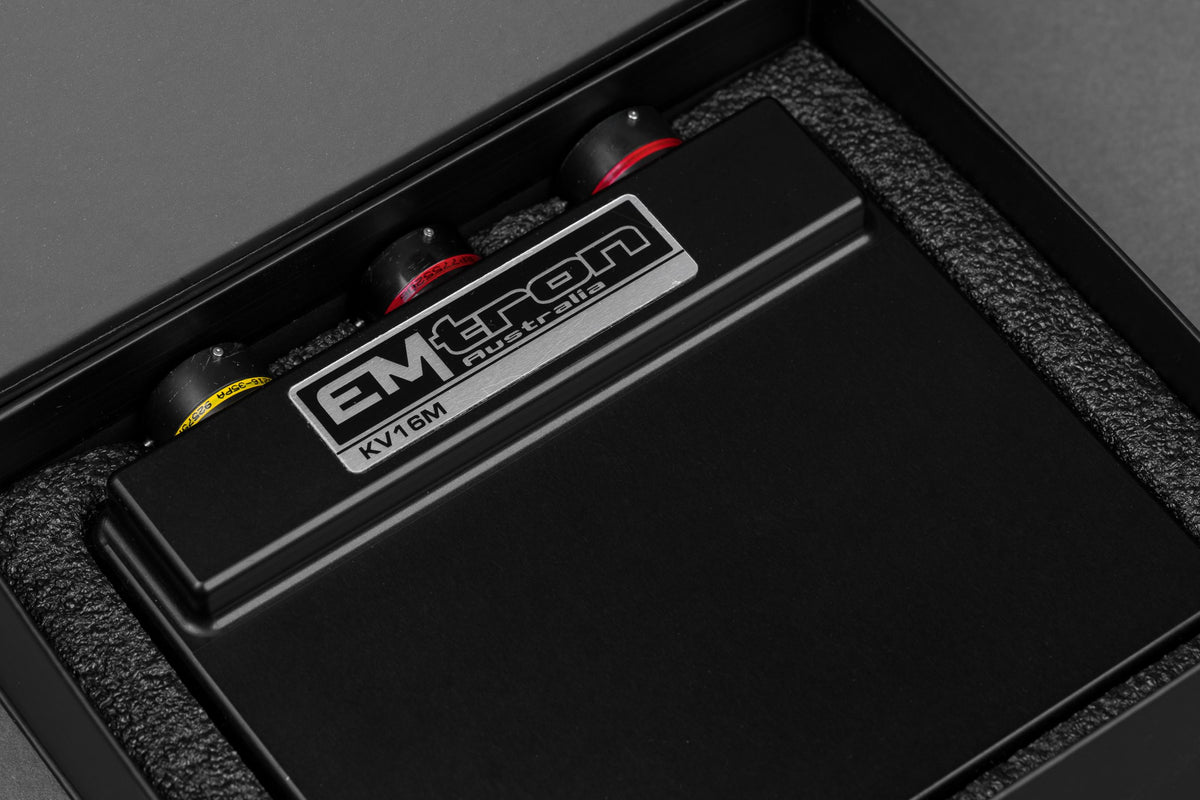

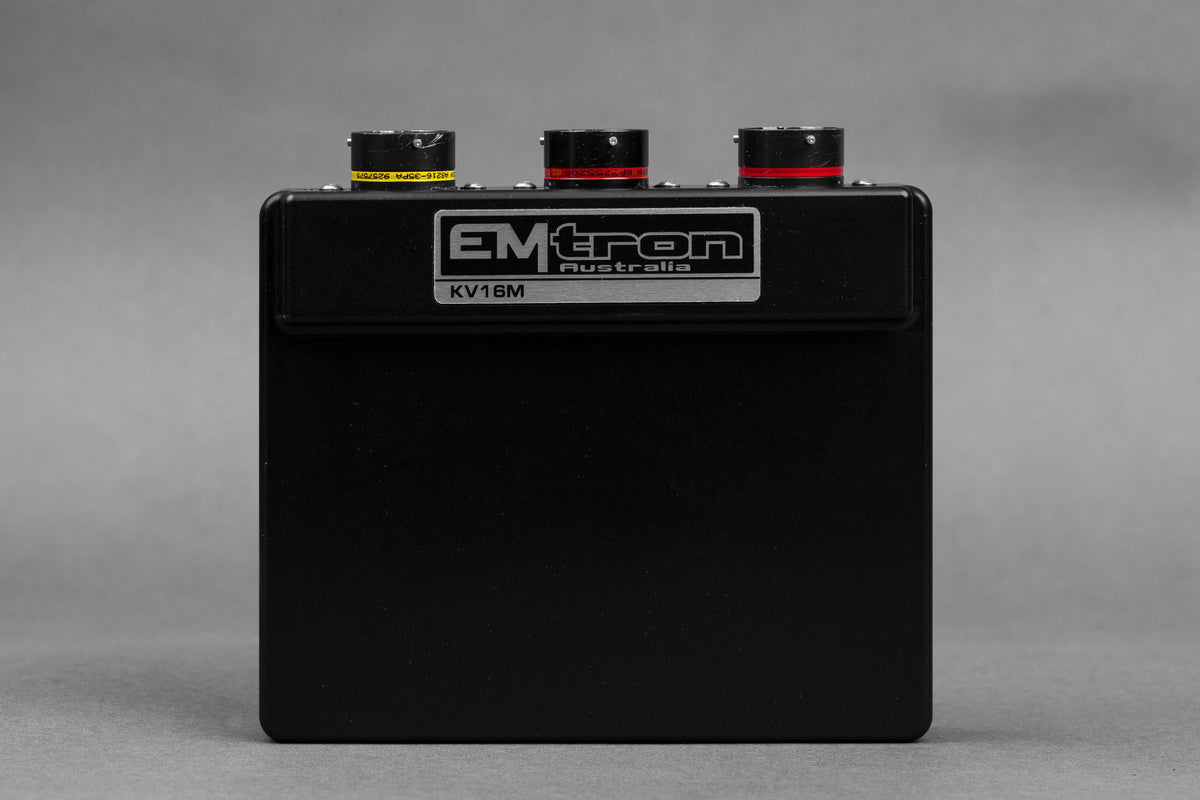

Emtron KV16 ECU Motorsport

Power Supply:
- Operating Voltage: 6.0 to 22.0 Volts DC (ECU shutdowns at 24.0V)
- Operating Current: 440mA at 14.0V (excluding sensor and load currents)
- Reverse Battery Protection via External Fuse
- “Smart” Battery Transient Protection

Operating Temperature:
- Max operating range: -30 to 110°C (-22 to 230°F)
- Recommended operating range: -30 to 85°C (-22 to 185°F)

Physical:
- 6061 grade aluminum CNC billet enclosure
- Enclosure size 134 mm x 162 mm x 27 mm
- Weight: 750g
- Waterproof

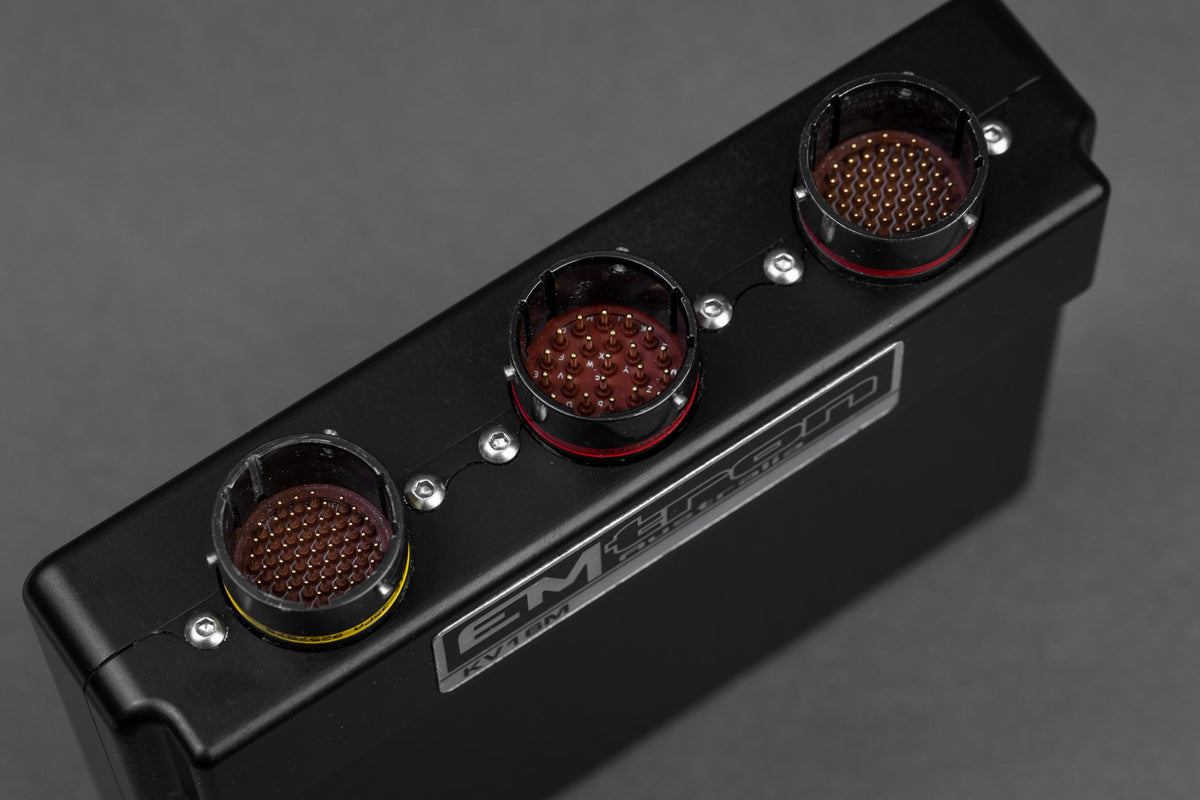

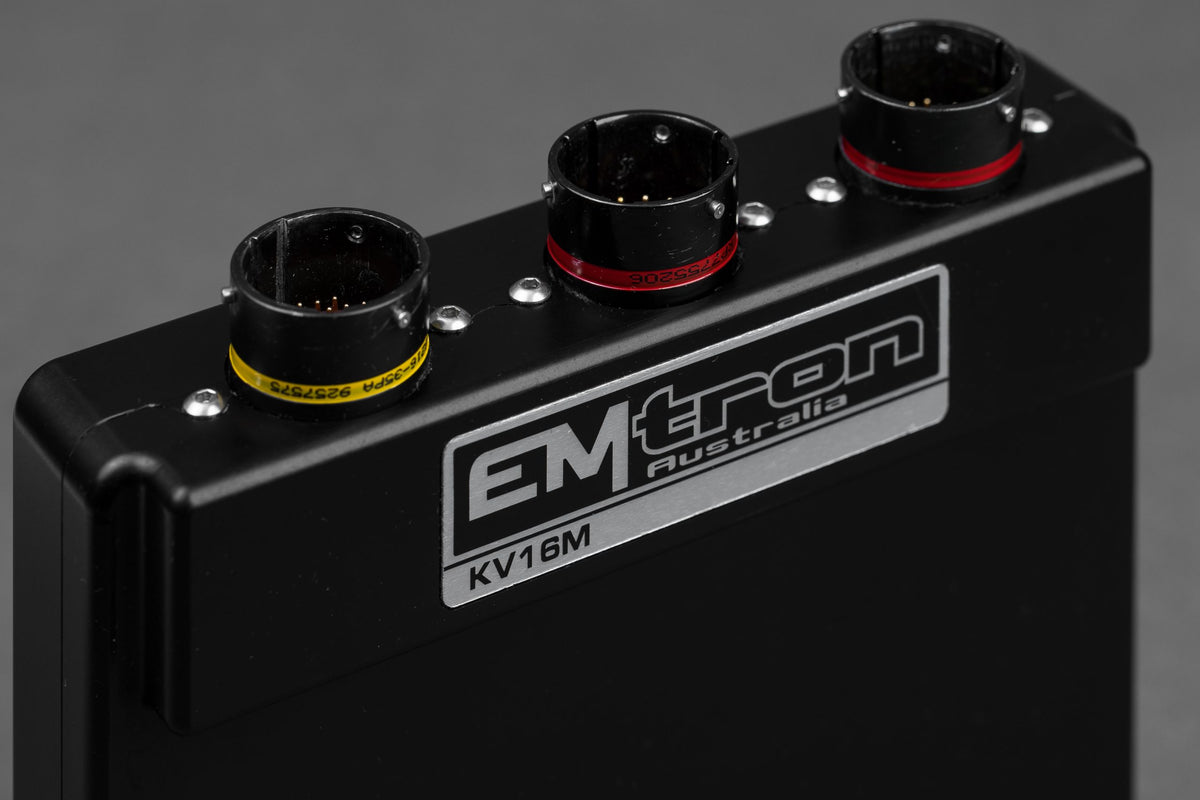

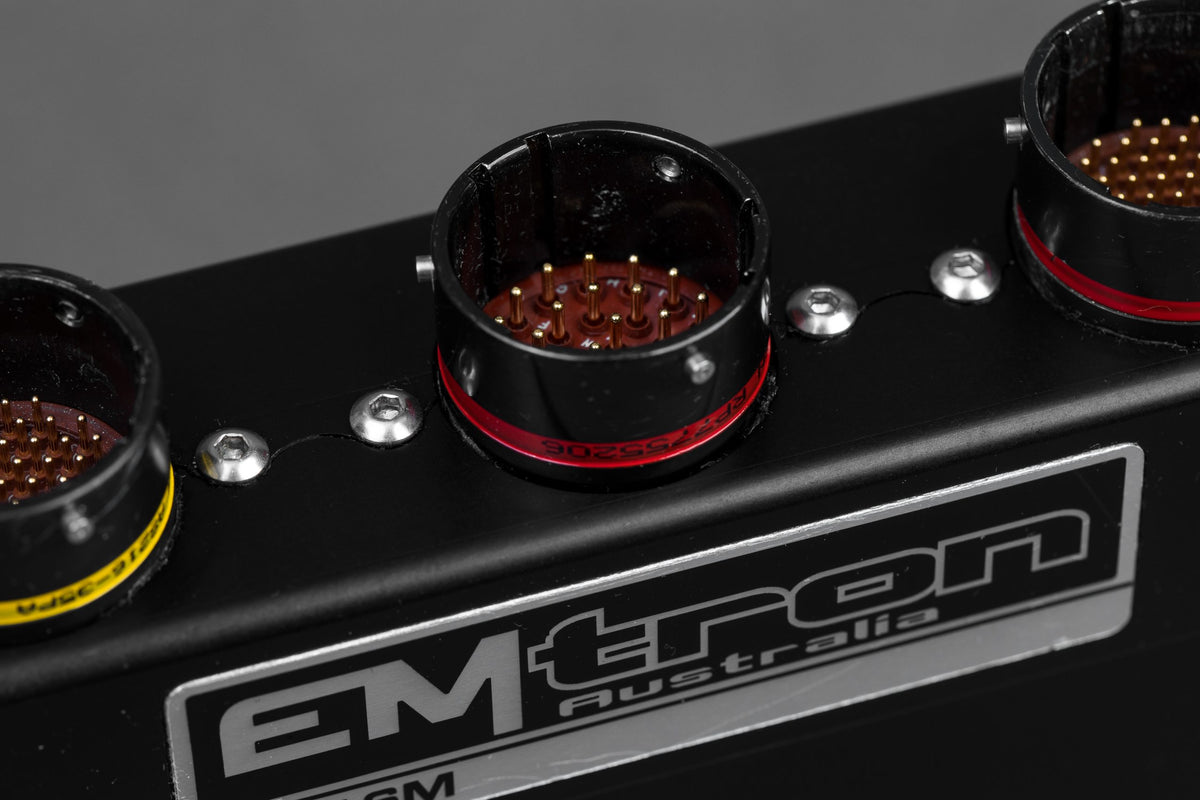

-Connector system: 136 way waterproof connectors with gold plated contacts
-- 1 x 55 Way Deutsch Autosport (Red)
-- 1 x 26 Way Deutsch Autosport (Red)
-- 1 x 55 Way Deutsch Autosport (Yellow)

Internal:
- Dual 100MHz Processors
- 500Mb DDR RAM (0.5Gb)
- 32MB ECU logging Memory
-- Over 1200 channels available
-- 1Hz to 500Hz logging rate
- 6 channel Oscilloscope function
-- Sampling at 100k samples/second
-- Includes Crank and Cam sensors inputs
-- Includes Digital Inputs 1-8
- 3-Axis Accelerometer
-- 16 Bit Resolution
-- +2g/+4g/+8g dynamically selectable full-scale
-- Output Data Rate 500Hz

Communications:
- 1x High Speed Ethernet 100Mbps for tuning software connection
- 2x CAN 2.0B 1Mbps/ 6 Channels per node, total 128 messages
