Radium Fuel Rail Kit, Ford Coyote

Name: Radium Fuel Rail Kit, Ford Coyote
Brand: Radium
SKU: 20-0433
Price: 459.95 AUD
Availability: InStock

$459.95

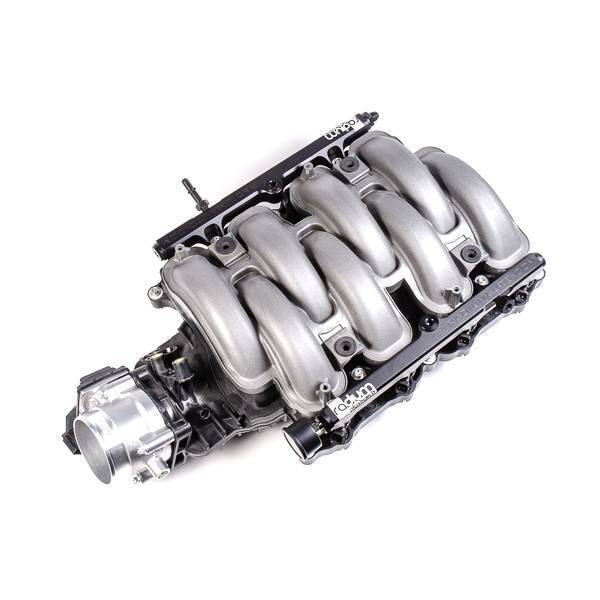

This kit is compatible with all vehicles that use the 5.0L Ford Coyote modular engine including the direct injected 2018+ Mustang GT, 2015-2017 Mustang GT, Ford Falcon, Ford F-150, etc. It can be used with OEM returnless or aftermarket return fuel systems. It also fits the Ford Racing Boss 302 Manifold.
Manufactured with a large internal bore, the fuel rail can support all necessary engine power requirements. They are CNC machined from solid 6061 aluminum, black anodized, and laser etched for a high quality surface finish. Each rail has three 8AN ORB (3/4-16 female) threads and one 1/8" NPT female port. Like the OEM fuel rails, the injector bores are 14mm ID so factory injectors are permitted. Additionally, these rails have provisions for the factory injector retaining clips.
This kit is compatible with all fuel types including popular alcohol mixtures such as E85.

Notes:
The parts below may be required for the specific vehicle if the 20-0434 Fuel Rail Plumbing Kit is NOT purchased.
For the 2018+ Mustang GT, Radium P/N: 14-0358 is required to adapt the OEM direct injection pump feed hose.
For the 2018+ Mustang GT, Radium P/N: 14-0359 is required to adapt the OEM fuel sensor.

If you have a deadline to meet, please confirm that we have stock ready for dispatch to avoid disappointment!

FREE SHIPPING ON ORDERS OVER $1200!**

Product Info

Included:
20-0433 Ford Coyote Fuel Rail Kit:

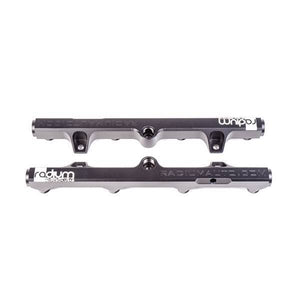

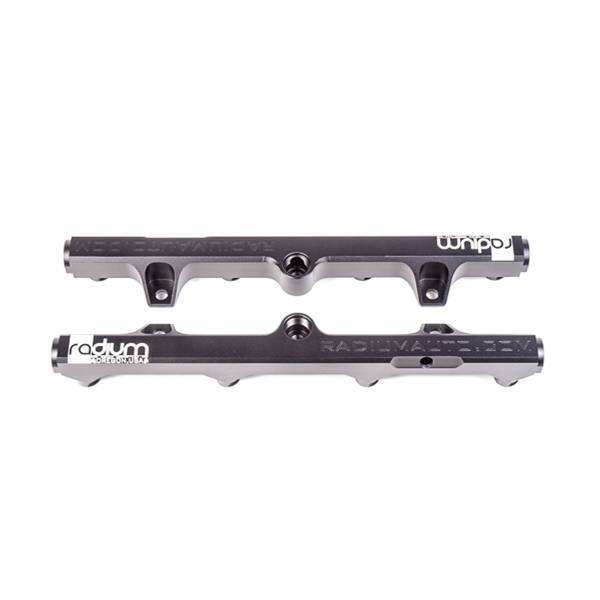

Black Anodized Laser Etched Aluminum Fuel Rails (x2)

Optional:
The 20-0434 Fuel Rail Plumbing Kit, Ford Coyote allows for an OEM bolt-on affair. It is compatible with ALL Coyote engines including the 2015-2017 Mustang GT and the 2018+ Mustang GT (with direct injection). This kit eliminates any unnecessary fuel hoses that route over the top of the engine preheating the fuel. It plumbs the fuel rails starting from the SAE quick disconnect fitting upstream near the firewall. The rails are run in parallel for even fuel distribution with the use of our high flowing billet aluminum Y-adapter fitting. All hoses are high quality PTFE compatible will all fuel types including E85. Billet aluminum O-ring plugs are included for all unused ports. Radium P/N: 14-0358 and Radium P/N: 14-0359 are included for the 2018+ Mustang GT and the Shelby GT350.

Vehicle Fitment:
2015-2017 Ford Mustang GT
2018-2019 Ford Mustang GT (See additional parts required)
2010-2014 Ford FPV Boss 5.0L V8
2014-2016 Ford XR8 5.0L V8
