  • Radium Fuel Rails, Top Feed Upgrade, Subaru EJ, Top Port
    Radium Fuel Rails, Top Feed Upgrade, Subaru EJ, Top Port
    Radium Fuel Rails, Top Feed Upgrade, Subaru EJ, Top Port
    Radium Fuel Rails, Top Feed Upgrade, Subaru EJ, Top Port
    Radium Fuel Rails, Top Feed Upgrade, Subaru EJ, Top Port
    Radium Fuel Rails, Top Feed Upgrade, Subaru EJ, Top Port
    Radium Fuel Rails, Top Feed Upgrade, Subaru EJ, Top Port
    Radium Fuel Rails, Top Feed Upgrade, Subaru EJ, Top Port

    Radium Fuel Rails, Top Feed Upgrade, Subaru EJ, Top Port

    $419.95

    Note: Fuel Pulse Dampener (FPD) Not Included

    Manufactured with a large internal bore, the fuel rails can support all necessary engine power requirements. They are CNC machined from solid 6061 aluminium, black anodised, and laser etched for a high quality surface finish.

    These fuel rails are designed specifically for OEM or equivalent fitment injectors. For injector height flexibility and thermal insulation, 2 sets of machined phenolic spacers are included. All injectors must use 11mm diameter upper O-rings, just like the OEM Subaru injectors. Reference instruction manual for more information.

    The fuel rails are compatible with all fuel types, including popular alcohol mixtures such as E85.

    20-0577-02 FUEL RAILS, TOP FEED UPGRADE, SUBARU EJ, TOP PORT

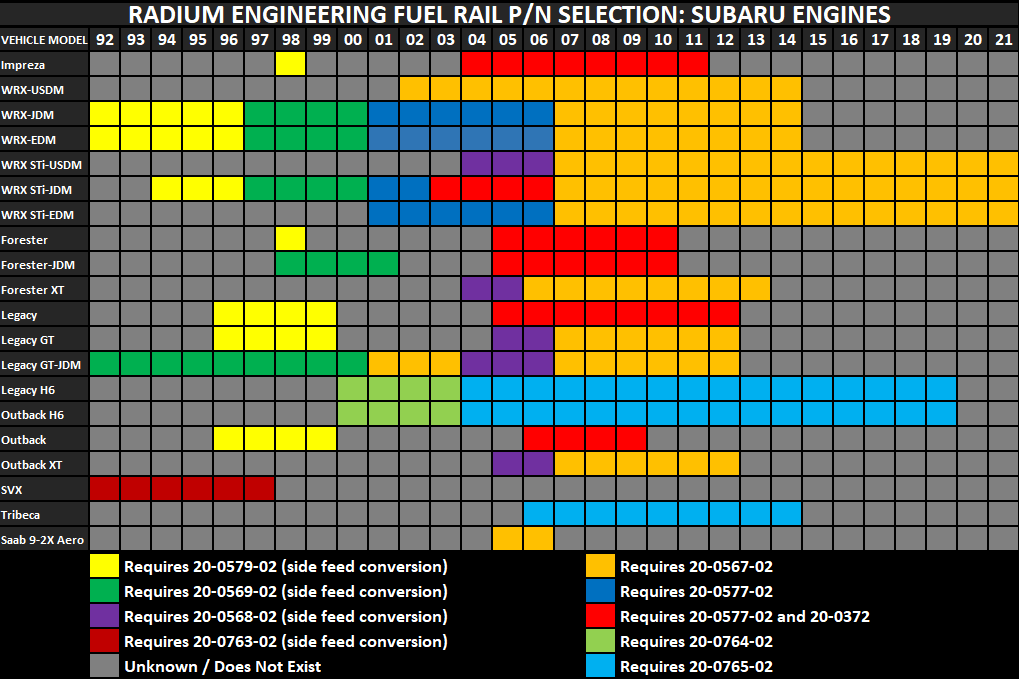

    VEHICLE COMPATIBILITY
    01-06 Subaru Impreza WRX (JDM/EDM)
    01-06 Subaru Impreza WRX STi (EDM)
    01-02 Subaru Impreza WRX STi (JDM)

    The vehicles below also require 20-0372
    03-06 Subaru Impreza WRX STi (JDM)
    04-11 Subaru Impreza (EJ253)
    05-10 Subaru Forester (EJ253)
    05-12 Subaru Legacy (EJ253)
    06-09 Subaru Outback (EJ253)

    If you have a deadline to meet, please confirm that we have stock ready for dispatch to avoid disappointment!

    FREE SHIPPING ON ORDERS OVER $1200!**

    Product Info

    FUEL INJECTOR COMPATIBILITY
    This fuel rail is compatible with factory or OEM equivalent fuel injectors. If upgrading fuel injectors, consult your aftermarket injector supplier for details. Radium Engineering cannot specify any further injector dimensions other than stating ‘OEM equivalent’.

    OVERVIEW
    These fuel rails have the same mounting, injector spacing and fitment as the 20-0567-02. However, each fuel rail has an 8AN ORB "top port", unlike 20-0567-02 which has a centre lower port.
    The added clearance is necessary for the EJ207 and JDM EJ205 engines that have early AVCS solenoids with vertical connectors (shown below).

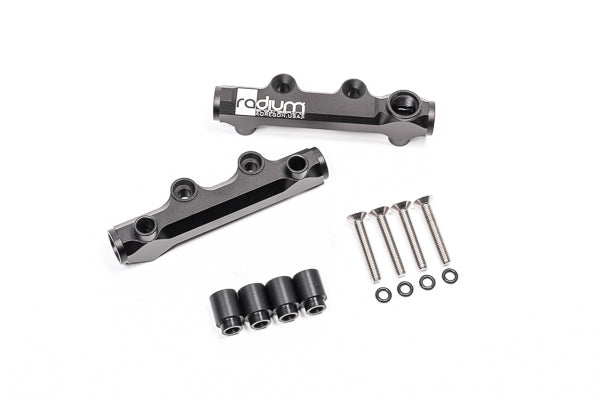

    INCLUDED
    -Black Anodised Laser Etched Aluminium Fuel Rails (x2)
    -Thermal Insulating Press-In Spacers, 20mm (x4)
    -Stainless Steel M8x1.25 Mounting Bolts (x4)
