Radium Fuel Rails, Top Feed Upgrade, Subaru Phase-I EZ30

Name: Radium Fuel Rails, Top Feed Upgrade, Subaru Phase-I EZ30
Brand: Radium
SKU: 20-0764-02
Price: 739.95 AUD
Availability: InStock

$739.95

Note: Fuel Pulse Dampener (FPD) Not Included

Manufactured with a large internal bore, the fuel rails can support all necessary engine power requirements. They are CNC machined from solid 6061 aluminium, black anodised, and laser etched for a high quality surface finish.

These fuel rails are designed specifically for OEM or equivalent fitment injectors. For injector height flexibility and thermal insulation, 2 sets of machined phenolic spacers are included. All injectors must use 11mm diameter upper O-rings, just like the OEM Subaru injectors. Reference instruction manual for more information.

The fuel rails are compatible with all fuel types, including popular alcohol mixtures such as E85.

20-0764-02 FUEL RAILS, SUBARU PHASE-I EZ30

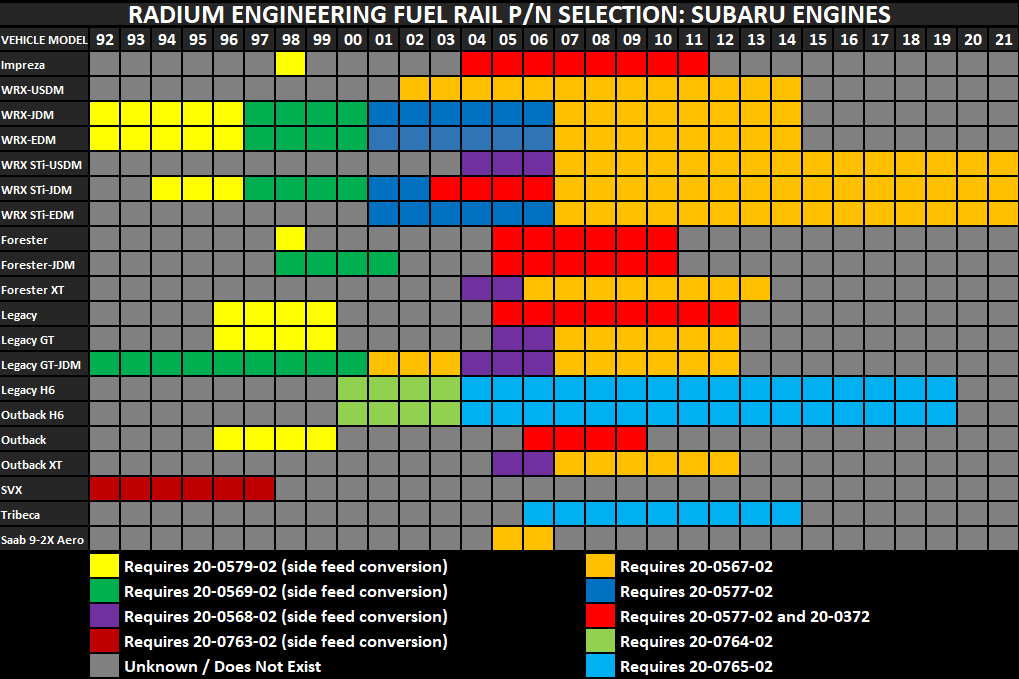

VEHICLE COMPATIBILITY
00-04 Subaru Outback H6
00-03 Subaru Lancaster 6
02-03 Subaru Legacy GT30
02-03 Subaru Legacy RS30
2002 Subaru Blitzen 6 Wagon

If you have a deadline to meet, please confirm that we have stock ready for dispatch to avoid disappointment!

FREE SHIPPING ON ORDERS OVER $1200!**

Product Info

FUEL INJECTOR COMPATIBILITY

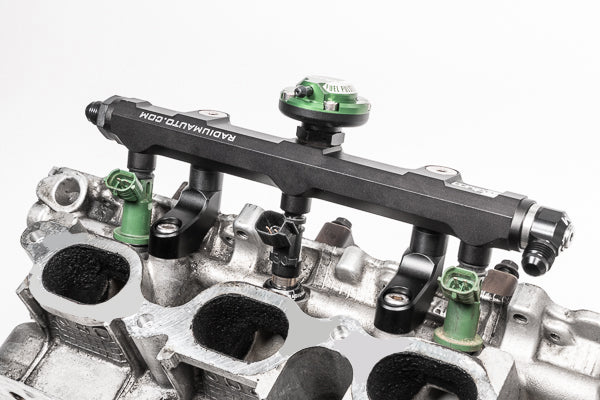

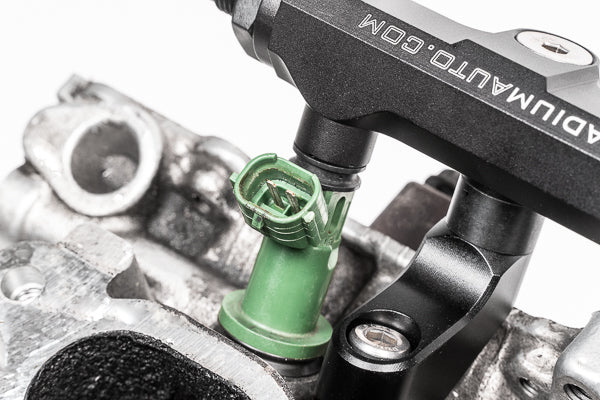

OEM Injectors-The Radium Engineering fuel rail features 11mm injector bores, making it compatible with the factory Subaru EZ30 Phase-I "air-assist" fuel injectors. No modifications are needed. If preparing to use aftermarket fuel injectors, read below.

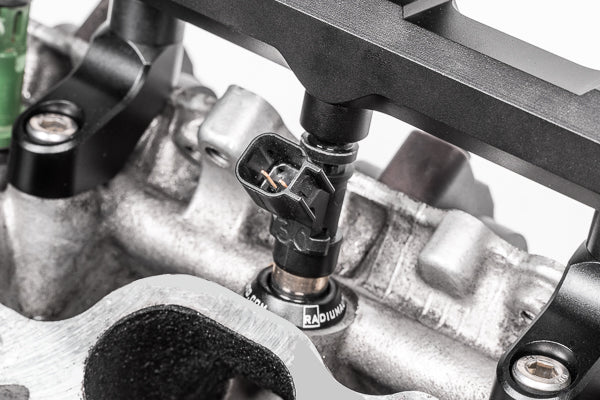

Aftermarket Injectors-The Phase-I EZ30 uses air-assist emissions equipment. These engines use a unique OEM fuel injector that is not replicated in the aftermarket. In order to use universal aftermarket fuel injectors, these cylinder heads require the provided Radium injector seats. When these injector seats are installed into the air-assist cylinder heads, an aftermarket injector that is 48mm long with 11mm upper O-ring and 14mm lower O-ring must be used. The following universal injectors have been verified to be compatible. However, there are others on the market that will work that are not listed here.

Injector Dynamics ID1050-XDS-48-11-14
Injector Dynamics ID1300-XDS-48-11-14
Injector Dynamics ID1700-XDS-48-11-14
Injector Dynamics ID2600-XDS-48-11-14

OVERVIEW

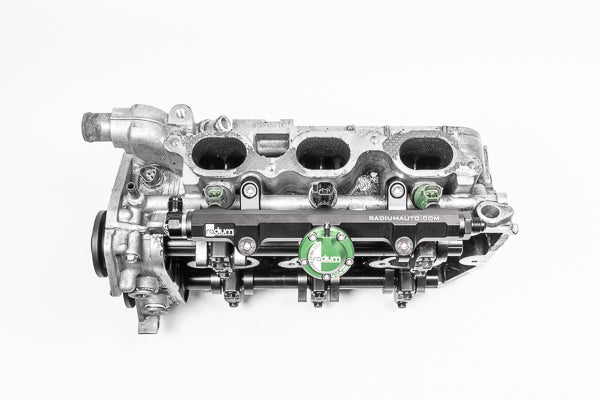

These H-6 fuel rails are for the original Subaru EZ30 "Phase-I" flat 6 engines. This engine is denoted by having a single exhaust port per bank. These engines also incorporate the Subaru air-assist fuel injection system.

Each fuel rail has three 8AN ORB threaded ports (6 total). To reuse the OEM FPR, use 20-0301.

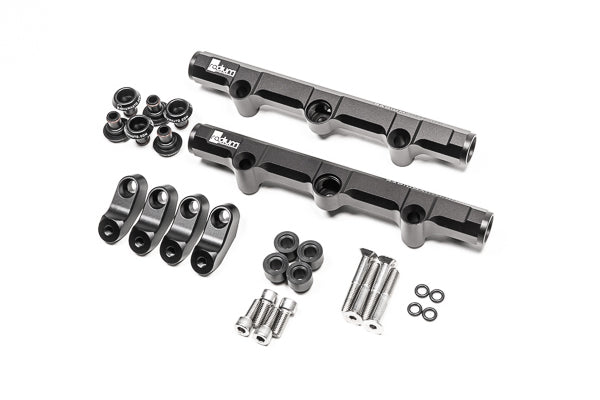

INCLUDED
-Black Anodised Laser Etched Aluminium Fuel Rails (x2)
-Subaru Air Assist Injector Seats (x6)
-Thermal Insulating Press-In Spacers, 11mm (x4)
-Stainless Steel M8x1.25 Mounting Bolts (x8)
