  • Radium Top Feed Fuel Rail Conversion Kit, Toyota 1JZ-GTE (Non-VVTi)
    Radium Top Feed Fuel Rail Conversion Kit, Toyota 1JZ-GTE (Non-VVTi)
    Radium Top Feed Fuel Rail Conversion Kit, Toyota 1JZ-GTE (Non-VVTi)
    Radium Top Feed Fuel Rail Conversion Kit, Toyota 1JZ-GTE (Non-VVTi)
    Radium Top Feed Fuel Rail Conversion Kit, Toyota 1JZ-GTE (Non-VVTi)
    Radium Top Feed Fuel Rail Conversion Kit, Toyota 1JZ-GTE (Non-VVTi)

    Radium Top Feed Fuel Rail Conversion Kit, Toyota 1JZ-GTE (Non-VVTi)

    $379.95

    Manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements. They are CNC machined from 6063 aluminum, media blasted, black anodized, and laser etched for a high quality surface finish. This kit is compatible with all fuel types including popular alcohol mixtures such as E85.

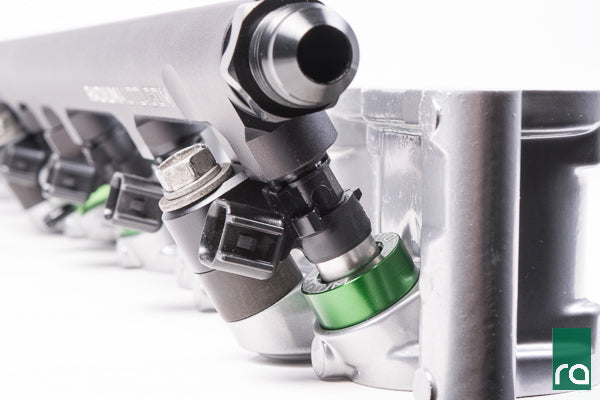

    The Radium fuel rail converts the OEM side feed fuel injector setup to top feed, allowing the use of high flow fuel injectors (NOT INCLUDED). The kit includes 2 different sets of mounting feet allowing various height fuel injectors to be used. The anodized aluminum mounting feet secure the fuel rail to the intake manifold reusing the OEM Toyota thermal insulating spacers.
    The fuel injector bores and the included press-fit injector seats are designed for 14mm injector O-rings. These seats include O-rings to prevent boost pressure leaks. They are CNC machined billet aluminum, anodized, and laser etched.

    FUEL INJECTOR COMPATIBILITY
    This fuel rail kit is compatbile with aftermarket universal fuel injectors with 14mm upper and lower O-rings. Two different sets of fuel rail mounting brackets are provided to accomodate 48mm and 34mm fuel injector heights.

    If you have a deadline to meet, please confirm that we have stock ready for dispatch to avoid disappointment!

    FREE SHIPPING ON ORDERS OVER $1200!**

    Product Info

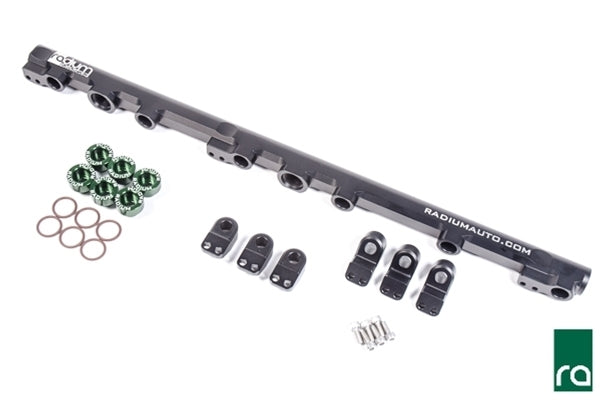

    INCLUDED:
    Black Anodized Laser Etched Aluminum Fuel Rail
    Black Anodized Aluminum Mounting Feet, Tall and Short
    Stainless Steel Mounting Feet Bolts (x6)
    20-0216-06 Toyota Injector Seat Kit, 6 Cylinder

    NOTE: Many aftermarket injectors have colorful aluminum caps that change the height and/or upper O-ring size. In most cases these adapters can be removed and the bare injector will be compatible with this fuel rail.
