  • Radium Dual Catch Can Kit, MK5 Supra, Fluid Lock
    Radium Dual Catch Can Kit, MK5 Supra, Fluid Lock
    Radium Dual Catch Can Kit, MK5 Supra, Fluid Lock
    Radium Dual Catch Can Kit, MK5 Supra, Fluid Lock
    Radium Dual Catch Can Kit, MK5 Supra, Fluid Lock
    Radium Dual Catch Can Kit, MK5 Supra, Fluid Lock
    Radium Dual Catch Can Kit, MK5 Supra, Fluid Lock
    Radium Dual Catch Can Kit, MK5 Supra, Fluid Lock
    Radium Dual Catch Can Kit, MK5 Supra, Fluid Lock
    Radium Dual Catch Can Kit, MK5 Supra, Fluid Lock

    Radium Dual Catch Can Kit, MK5 Supra, Fluid Lock

    $979.95

    2020+ Toyota MK5 GR Supra
    -Turbocharged 3.0L (B58) ONLY

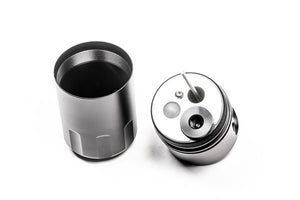

    Radium Engineering catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick. These kits mount using factory holes and integrate perfectly with the surrounding components. They do NOT vent to atmosphere (VTA), thus are emissions and track legal. Closed loop systems remove the oil and sludge from the PCV gasses before it is routed to the engine to be burned. A closed loop system also promotes negative crankcase pressure for optimal performance. Furthermore, closed systems prevent unwanted oil vapours from entering the cabin. The dipsticks built into the catch cans allow easy inspection of accumulated fluid. No cutting, drilling or permanent modifications are required.

    If you have a deadline to meet, please confirm that we have stock ready for dispatch to avoid disappointment!

    FREE SHIPPING ON ORDERS OVER $1200!**

    Product Info

    20-0751-FL DUAL CATCH CAN KIT, MK5 SUPRA
    For the ultimate in engine protection, Radium recommends 20-0751 Dual Catch Can Kit, MK5 Supra. This kit utilises both the "PCV" and "CCV" catch-can kits.

    20-0749-FL CATCH CAN KIT, PCV, MK5 SUPRA

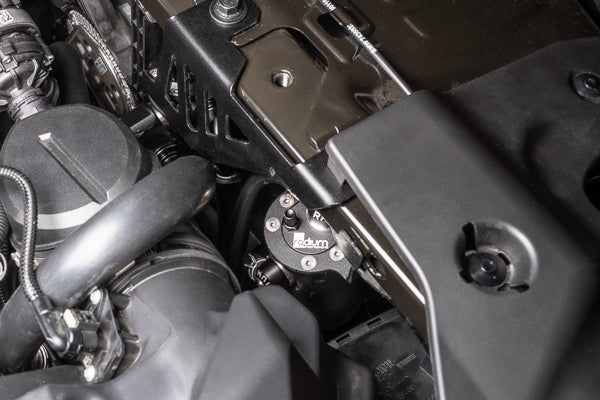

    The PCV catch can kit runs inline between the ventilation valve and the intake pipe. It mounts to threaded bosses on the front radiator support. This location stays clear of aftermarket parts such as an upgraded turbocharger or intake tubing. The PCV catch-can traps unwanted "metered" crankcase vapour, unspent fuel, and oil sludge. It promotes clean filtered air back into the turbocharger inlet.
    Notes:
    No extra inline check valve is required since Radium catch cans are pressure sealed.

    20-0750-FL CATCH CAN KIT, CCV, MK5 SUPRA

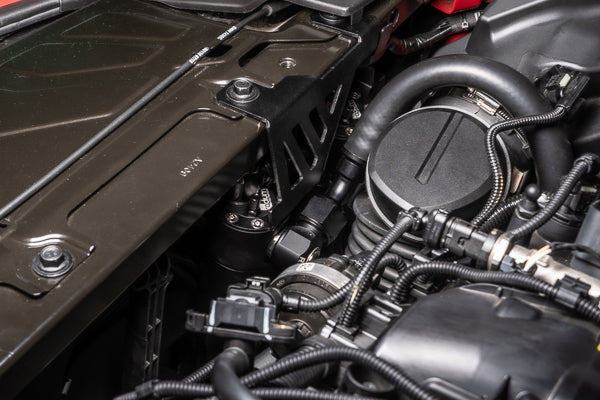

    The CCV catch-can mounts to 2 holes on the front radiator support. It was designed specifically to clear strut braces. Furthermore, this location stays clear of aftermarket parts such as an upgraded turbocharger or intake tubing.

    To retain factory functionality, the CCV catch-can runs inline between the crankcase vent (CCV) port and the intake pipe. At low loads, it experiences atmospheric pressure. However, when the engine is at high load (WOT), the line will experience high flow from the crankcase into the intake system. This would normally lead to oil and sludge accumulation in the air filter intake pipe. This oil accumulation would spread and be found in the intercooler, which lowers the thermal efficiency properties of the heat exchanger and leads to decreased performance. The CCV catch-can captures this and promotes clean filtered air back into the intake.

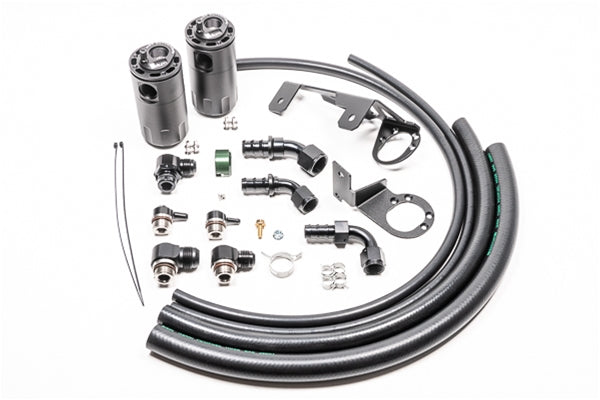

    Both Kits Include:

    Baffled oil catch can
    MK5 GR Supra specific mounting bracket
    AN adaptor fittings and hose ends
    Stainless steel hardware
    Radium PCV hose
